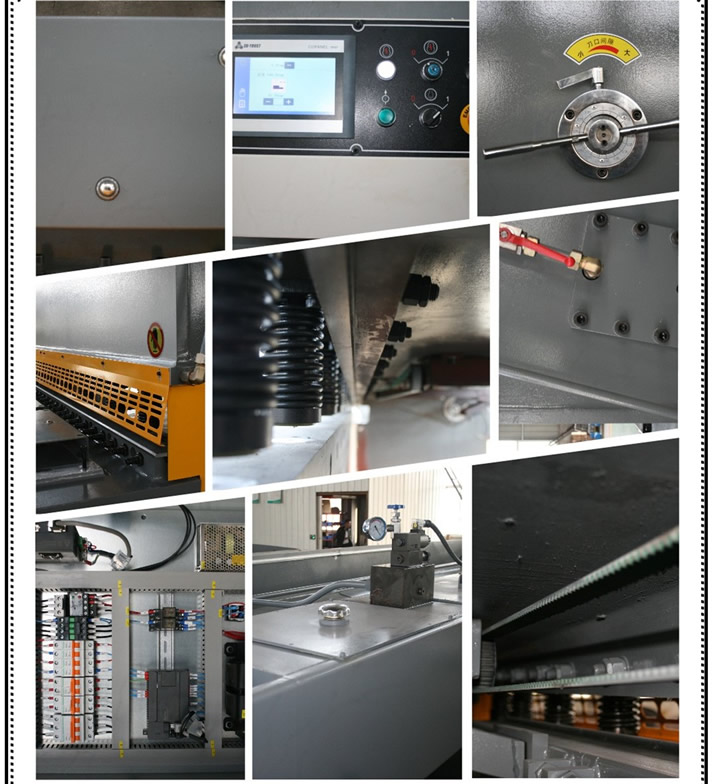

產品特點:
1.采用整體焊接機架結構，機床剛性好。
2.機架采用大型數控鏜銑床整體加工，保證剪切精度和質量。
3.刃口間隙調整迅速方便、準確。
4.剪切行程可無級調節，以提高剪切效率。
5.采用串聯式油缸同步系統，氮氣缸回程，工作平穩可靠。
6.標配ESTUN剪板機專用數控系統，精度高，操作方便。
7.后擋料采用國際名牌滾珠絲桿、直線導軌結構，伺服電機驅動，定位準確、可靠。
8.球形滾珠托料臺，方便用戶進料剪切。
9.前托料桿設有前定位刻度尺，機械擋塊定位，適應用戶不同的操作要求。
10.設有燈光照明，便于對線剪切。
11.可選配氣動后托料和前自動送料臺。
技術參數：
|

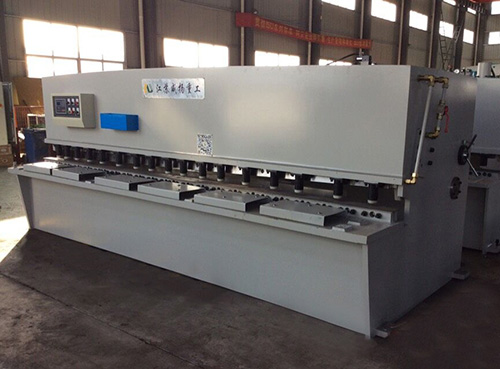

QC11Y Series Hydraulic guillotine beam shearing machine |
|
Specification |
Shearing
thickness
(mm) |
Shearing
width
（mm） |
Strokes
mm-1 |
Backguage
range
(mm) |
Shearing
angler
(°) |
Workbench
height
（mm） |
Main
power
（kw） |
|
QC11Y/K -6*2500 |
6 |
2500 |
10-35 |
20-600 |
1°30′ |
800 |
7.5 |
|
QC11Y/K -6*3200 |
6 |
3200 |
8-35 |
20-600 |
1°30′ |
800 |
7.5 |
|
QC11Y/K -6*4000 |
6 |
4000 |
7-35 |
20-600 |
1°30′ |
800 |
7.5 |
|
QC11Y/K -6*5000 |
6 |
5000 |
6-25 |
20-800 |
1°30′ |
900 |
11 |
|
QC11Y/K -6*6000 |
6 |
6000 |
5-25 |
20-800 |
1°30′ |
1000 |
11 |
|
QC11Y/K -8*2500 |
8 |
2500 |
10-35 |
20-600 |
1°30′ |
800 |
7.5 |
|
QC11Y/K -8*3200 |
8 |
3200 |
8-35 |
20-600 |
1°30′ |
900 |
7.5 |
|
QC11Y/K -8*4000 |
8 |
4000 |
7-35 |
20-600 |
1°30′ |
1000 |
15 |
|
QC11Y/K -8*5000 |
8 |
5000 |
6-25 |
20-800 |
0.5-2° |
1050 |
15 |
|
QC11Y/K -8*6000 |
8 |
6000 |
5-25 |
20-800 |
0.5-2° |
840 |
15 |
|
QC11Y/K -12*2500 |
12 |
2500 |
10-35 |
20-800 |
0.5-2.5° |
900 |
15 |
|
QC11Y/K -12*3200 |
12 |
3200 |
6-20 |
20-800 |
0.5-2.5° |
940 |
15 |
|
QC11Y/K -12*4000 |
12 |
4000 |
6-20 |
20-800 |
0.5-2.5° |
1000 |
15 |
|
QC11Y/K -12*5000 |
12 |
5000 |
5-15 |
20-800 |
0.5-2.5° |
1060 |
30 |
|
QC11Y/K -12*6000 |
12 |
6000 |
6-15 |
20-800 |
0.5-2.5° |
840 |
18.5 |
|
QC11Y/K -16*3200 |
16 |
3200 |
7-30 |
20-800 |
2°30′ |
900 |
30 |
|
QC11Y/K -16*4000 |
16 |
4000 |
6-30 |
20-800 |
2°30′ |
950 |
30 |
|
QC11Y/K -16*5000 |
16 |
5000 |
6-15 |
20-800 |
2°30′ |
1100 |
30 |
|
QC11Y/K -16*6000 |
16 |
6000 |
5-15 |
20-800 |
0.5-2.5° |
1100 |
37 |
|
QC11Y/K -20*2500 |
20 |
2500 |
9-30 |
20-1000 |
0.5-2.5° |
900 |
30 |
|
QC11Y/K -20*3200 |
20 |
3200 |
7-30 |
20-1000 |
0.5-3° |
950 |
30 |
|
QC11Y/K -20*4000 |
20 |
4000 |
6-30 |
20-1000 |
0.5-3° |
1100 |
30 |
|
QC11Y/K -20*5000 |
20 |
5000 |
5-30 |
20-1000 |
0.5-3° |
1100 |
37 |
|
QC11Y/K -20*6000 |
20 |
6000 |
5-15 |
20-1000 |
3° |
1200 |
45 |
|
QC11Y/K -25*2500 |
25 |
2500 |
5-25 |
20-1000 |
3° |
900 |
37 |
|
QC11Y/K -25*3200 |
25 |
3200 |
4-25 |
20-1000 |
0.5-3.5° |
950 |
37 |
|
QC11Y/K -25*4000 |
25 |
4000 |
3-20 |
20-1000 |
0.5-3.5° |
1100 |
37 |
|
QC11Y/K -32*2500 |
32 |
2500 |
4-12 |
20-1000 |
0.5-3.5° |
1000 |
55 |
|
QC11Y/K -32*3200 |
32 |
3200 |
4-12 |
20-1000 |
0.5-3.5° |
1100 |
55 |
|
QC11Y/K -40*2500 |
40 |
2500 |
3-10 |
20-1000 |
0.5-3.5° |
1200 |
60 |
|
QC11Y/K -40*3200 |
40 |
3200 |
3-10 |
20-1000 |
0.5-4° |
1200 |
60 |
|
Because in the continuous improvement of products, if there is difference between this date and technical data, should comply with the technical agreement parameters on both sides. No further notice! |
