產品特點:
1、 本機采用先進的液壓集成閥塊。結構緊湊，減少管路連接，提高了系統的可靠性與易維修性。
2、折彎機采用并聯油缸、為保證滑塊在下死點精確定位，在油缸內設置機械擋塊機構，由電機調整。滑塊在行程中的同步，采用機械同步機構，結構簡單，穩定可靠，維修方便。
3、折彎機滑塊行程可無級調節。
4、折彎機模具采用合金鋼經過鍛造、銑削、熱處理磨削等加工而成。上模采用多件短模并接成整體長模，具有精度高、互換性好。便于裝卸等特點。

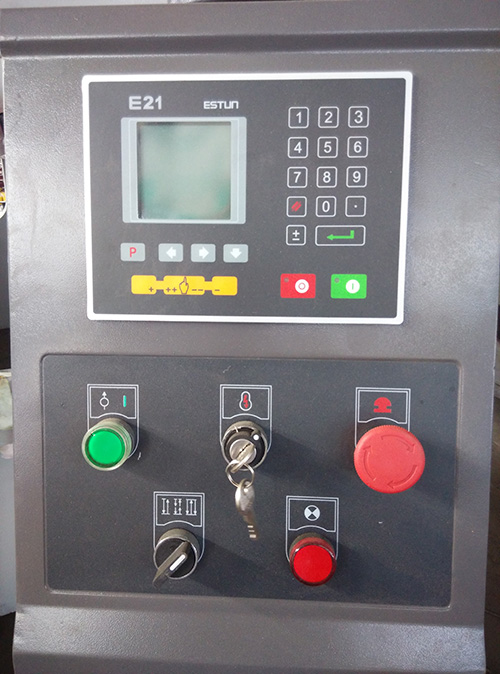

5.標配簡易數控后擋料，E21系統，后擋料可定位。
技術參數：
|
W67Y/K Series NC AND CNC Hydraulic bending machine |
|
Specification |
Nominal press
（KN） |
Length of workbench
（mm） |
Throat depth
（mm） |
Ram stroke
（mm） |
Number of stroke
（min-1） |
Motor power
（KW） |
|
WC67Y/K-40/2500 |
400 |
2500 |
200 |
100 |
11 |
4 |
|
WC67Y/K-50/2500 |
500 |
2500 |
200 |
100 |
11 |
5.5 |
|
WC67Y/K-63/2500 |
630 |
2500 |
250 |
100 |
10 |
5.5 |
|
WC67Y/K-63/3200 |
630 |
3200 |
250 |
100 |
10 |
5.5 |
|
WC67Y/K-80/2500 |
800 |
2500 |
320 |
150 |
8 |
7.5 |
|
WC67Y/K-80/3200 |
800 |
3200 |
320 |
150 |
8 |
7.5 |
|
WC67Y/K-100/2500 |
800 |
2500 |
320 |
150 |
8 |
7.5 |
|
WC67Y/K-100/3200 |
1000 |
3200 |
320 |
150 |
8 |
7.5 |
|
WC67Y/K-100/4000 |
1000 |
4000 |
400 |
150 |
8 |
7.5 |
|
WC67Y/K-125/2500 |
1250 |
2500 |
320 |
150 |
8 |
7.5 |
|
WC67Y/K-125/3200 |
1250 |
3200 |
320 |
150 |
8 |
7.5 |
|
WC67Y/K-125/4000 |
1250 |
4000 |
400 |
150 |
8 |
7.5 |
|
WC67Y/K-160/3200 |
1600 |
3200 |
400 |
180 |
8 |
11 |
|
WC67Y/K-160/4000 |
1600 |
4000 |
400 |
180 |
8 |
11 |
|
WC67Y/K-160/5000 |
1600 |
5000 |
400 |
180 |
7 |
11 |
|
WC67Y/K-160/6000 |
1600 |
6000 |
400 |
200 |
7 |
15 |
|
WC67Y/K-200/3200 |
2000 |
3200 |
400 |
200 |
7 |
15 |
|
WC67Y/K-200/4000 |
2000 |
4000 |
400 |
200 |
7 |
15 |
|
WC67Y/K-200/6000 |
2000 |
6000 |
400 |
200 |
7 |
15 |
|
WC67Y/K-250/3200 |
2500 |
3200 |
400 |
200 |
7 |
18.5 |
|
WC67Y/K-250/4000 |
2500 |
4000 |
400 |
200 |
7 |
18.5 |
|
WC67Y/K-250/6000 |
2500 |
6000 |
400 |
250 |
7 |
18.5 |
|
WC67Y/K-300/3200 |
3000 |
3200 |
400 |
250 |
7 |
22 |
|
WC67Y/K-300/4000 |
3000 |
4000 |
400 |
250 |
7 |
22 |
|
WC67Y/K-300/6000 |
3000 |
6000 |
400 |
250 |
7 |
30 |
|
WC67Y/K-300/7000 |
3000 |
7000 |
400 |
250 |
7 |
30 |
|
WC67Y/K-400/6000 |
4000 |
6000 |
400 |
250 |
7 |
30 |
|
WC67Y/K-500/6000 |
5000 |
6000 |
400 |
300 |
7 |
37 |
|
WC67Y/K-600/6000 |
6000 |
6000 |
420 |
300 |
7 |
37 |
|
Because in the continuous improvement of products, if there is difference between this date and technical data, should comply with the technical agreement parameters on both sides. No further notice! |
