產品特點：

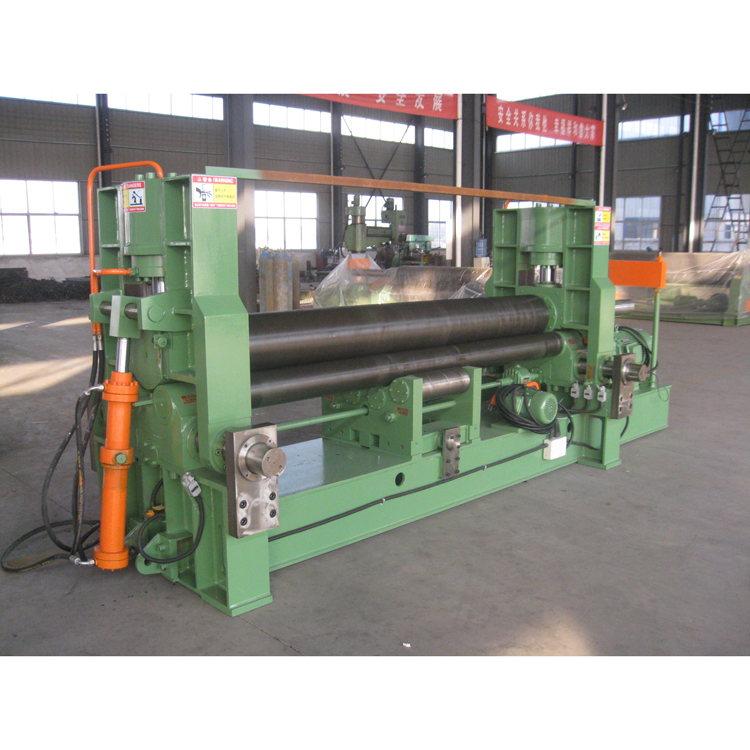

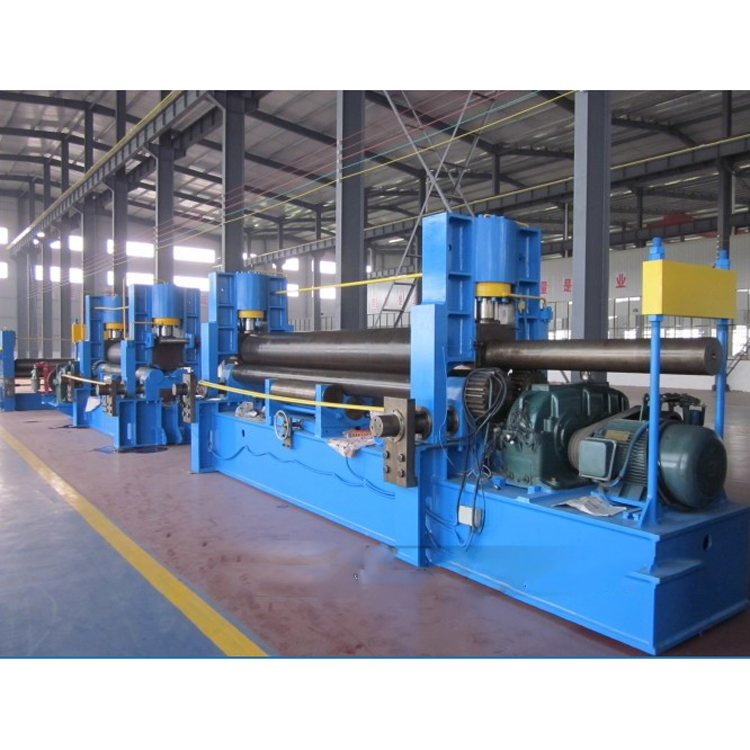

該機屬于液壓型三輥卷板機，用于常溫狀態下將板材卷成圓筒形、圓弧形、圓錐形。上輥可以垂直移動、水平移動。
預彎通過上輥水平移動，使上輥相對于下輥呈非對稱位置來實現。
滾圓時通過電動機、減速機帶動兩下輥進行。由于下輥的標高不變，所以便于進料和操作。翻倒架采用液壓翻倒。
技術參數：
|
W11S Series upper roller universal plate rolling machine |
|
specification |
Max.rolling
sheet thickness
(mm) |
Max.pre-bending
sheet thickness
(mm) |
Max.rolling sheet width
(mm) |
Diameter of up roller
(mm) |
Motor power
(KW) |
|
W11S-12*3000 |
12 |
3000 |
9 |
290 |
11 |
|
W11S-16*2000 |
16 |
2000 |
12 |
260 |
11 |
|
W11S-16*2500 |
16 |
2500 |
12 |
300 |
15 |
|
W11S-16*3000 |
16 |
3000 |
12 |
320 |
15 |
|
W11S-20*2000 |
20 |
2000 |
16 |
300 |
15 |
|
W11S-20*2500 |
20 |
2500 |
16 |
330 |
22 |
|
W11S-20*3000 |
20 |
3000 |
16 |
380 |
22 |
|
W11S-25*2000 |
25 |
2000 |
20 |
410 |
15 |
|
W11S-25*2500 |
25 |
2500 |
20 |
438 |
30 |
|
W11S-25*3000 |
25 |
3000 |
20 |
410 |
37 |
|
W11S-30*2000 |
30 |
2000 |
25 |
380 |
30 |
|
W11S-30*2500 |
30 |
2500 |
25 |
410 |
30 |
|
W11S-30*3000 |
30 |
3000 |
25 |
450 |
37 |
|
W11S-30*4000 |
30 |
4000 |
25 |
550 |
45 |
|
W11S-40*2000 |
40 |
2000 |
32 |
410 |
37 |
|
W11S-40*2500 |
40 |
2500 |
32 |
500 |
45 |
|
W11S-40*3000 |
40 |
3000 |
32 |
550 |
55 |
|
W11S-40*4000 |
40 |
4000 |
32 |
630 |
55 |
|
W11S-50*2500 |
50 |
2500 |
40 |
580 |
55 |
|
W11S-50*3000 |
50 |
3000 |
40 |
620 |
75 |
|
W11S-50*4000 |
50 |
4000 |
40 |
700 |
75 |
|
W11S-60*2500 |
60 |
2500 |
60 |
650 |
75 |
|
W11S-60*3000 |
60 |
3000 |
60 |
710 |
75 |
|
W11S-60*4000 |
60 |
4000 |
60 |
780 |
90 |
|
W11S-70*2500 |
70 |
2500 |
60 |
700 |
75 |
|
W11S-70*3000 |
70 |
3000 |
60 |
740 |
90 |
|
W11S-70*4000 |
70 |
4000 |
60 |
770 |
90 |
|
W11S-80*2500 |
80 |
2500 |
70 |
730 |
75 |
|
W11S-80*3000 |
80 |
3000 |
70 |
770 |
90 |
|
W11S-80*4000 |
80 |
4000 |
70 |
880 |
90 |
|
W11S-100*2500 |
100 |
2500 |
90 |
820 |
90 |
|
W11S-100*3000 |
100 |
3000 |
90 |
880 |
110 |
|
Because in the continuous improvement of products, if there is difference between this date and technical data, should comply with the technical agreement parameters on both sides. No further notice! |
