產品特點：

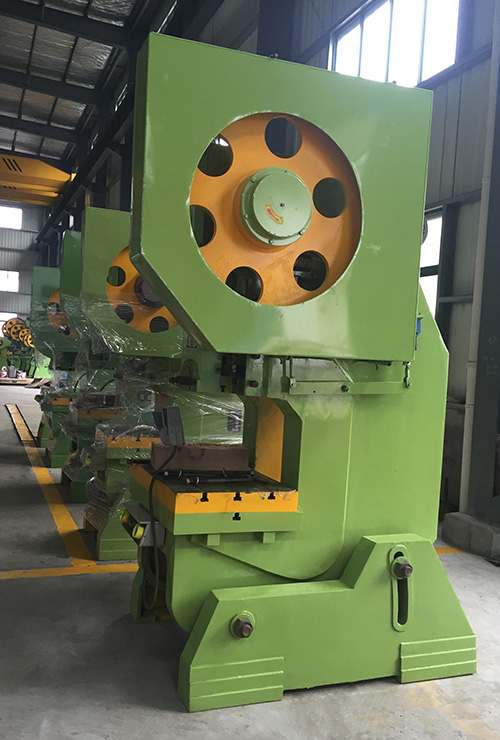

沖床就是一臺沖壓式壓力機。沖壓工藝由于比傳統，相對于機械加工來說有節約材料和能源，效率高，對操作者技術要求不高及通過各種模具應用可以做出機械加工所無法達到的產品這些優點，因而它的用途越來越廣泛。
沖壓生產主要是針對板材的。通過模具，能做出落料，沖孔，成型，拉深，修整，精沖，整形，鉚接及擠壓件等等，廣泛應用于各個領域。如我們用的開關插座，杯子，碗柜，碟子，電腦機箱，甚至導彈飛機……有非常多的配件都可以用沖床通過模具生產出來。
技術參數：
|
TEMS |
UNIT |
J23-6.3 |
J23-10 |
J23-16 |
J23-25 |
J23-35 |
J23-40 |
J23-63 |
JB23-63 |
|
Capacity |
KN |
63 |
100 |
160 |
250 |
350 |
400 |
630 |
630 |
|
Nominal stroke |
mm |
2 |
2 |
2 |
2.5 |
3.5 |
6 |
6 |
7 |
|
Slide stroke length |
mm |
35 |
45 |
55 |
65 |
80 |
90 |
110 |
110 |
|
Stroke times per minute |
spm |
170 |
145 |
125 |
55 |
50 |
45 |
50 |
40 |
|
Max. Die set height |
mm |
150 |
180 |
220 |
270 |
290 |
320 |
360 |
390 |
|
Die shut height adjustment |
mm |
30 |
35 |
45 |
55 |
60 |
65 |
80 |
80 |
|
Throat depth |
mm |
110 |
130 |
160 |
200 |
220 |
250 |
260 |
310 |
|
Distance between uprights |
mm |
150 |
180 |
220 |
270 |
280 |
340 |
350 |
420 |
|
Slide bottom size |
L-R |
mm |
140 |
170 |
200 |
250 |
250 |
300 |
300 |
400 |
|
F-B |
mm |
120 |
150 |
180 |
220 |
220 |
260 |
260 |
360 |
|
Stemhole size |
Diameter |
mm |
30 |
30 |
40 |
40 |
40 |
50 |
50 |
50 |
|
Depth |
mm |
55 |
55 |
60 |
60 |
60 |
70 |
70 |
70 |
|
Bolster size |
L-R |
mm |
310 |
370 |
450 |
560 |
610 |
700 |
760 |
860 |
|
F-B |
mm |
200 |
240 |
300 |
370 |
400 |
460 |
480 |
570 |
|
Thickness |
mm |
30 |
35 |
40 |
50 |
60 |
65 |
80 |
80 |
|
Table hole diameter |
mm |
60 |
80 |
100 |
120 |
130 |
150 |
180 |
180 |
|
Max. inclinable angle |
° |
45 |
35 |
35 |
30 |
30 |
30 |
20 |
20 |
|
Bolster surface height |
mm |
750 |
730 |
750 |
800 |
815 |
850 |
810 |
850 |
|
Over all dimensions |
L-R |
mm |
620 |
665 |
847 |
950 |
1058 |
1335 |
1350 |
1500 |
|
F-B |
mm |
780 |
900 |
1150 |
1345 |
1460 |
1721 |
1810 |
1958 |
|
Height |
mm |
1503 |
1658 |
1910 |
2130 |
2225 |
2488 |
2740 |
2868 |
|
Distance between foundation bolts |
L-R |
mm |
314 |
394 |
450 |
600 |
650 |
750 |
850 |
920 |
|
F-B |
mm |
530 |
610 |
780 |
920 |
1020 |
1060 |
1180 |
1300 |
|
Motor power |
kw |
0.75 |
1.1 |
1.5 |
2.2 |
4 |
5.5 |
5.5 |
7.5 |
|
Weight |
kg |
400 |
576 |
1085 |
1780 |
2650 |
3540 |
4550 |
5500 |
|
由于產品不斷改進中，如出現此參數與實際數據不一致出，應遵照雙方的技術參數協議，恕不另行通知。
Because in the continuous improvement of products, if there is difference between this date and technical data, should comply with the technical agreement parameters on both sides. No further notice! |
